Closed Frame Touch Monitor 7-27 Inches(3A Series)

Product Information
Design:Tablet Design,Smooth Lines.
Intereface: VGA,DVI,HDMI,DP, MIC,AUDIO
Mounting:Wall-mounted,Desktop,Embedded
Customizable: Camera,Size,Logo,Color,Casing,Packaging
Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

Features
● 10 points pcap smooth touch,touch accuracy up to 0.1MM
● Industrial-grade LCD panels for long operating life
● IP65 and front protection to resist water and dust
● The visual effect is better under the sun

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

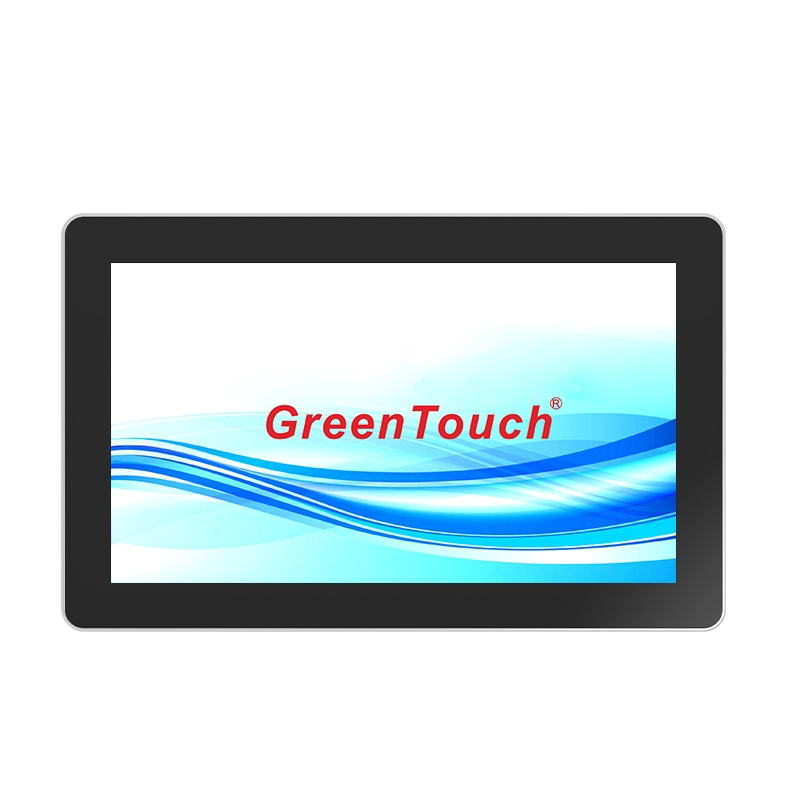

3A Touch Monitor Overview

GreenTouch’s close frame touch monitor 3A series provide cost-effective solutions for customers who need industrial and commercial touch.A comprehensive size range from 7 ”to 27” ensures compatibility with:Self-service inquiry, ticketing, railway transportation, education, medical and retail terminals, and other industries.
Versatile Connectivity

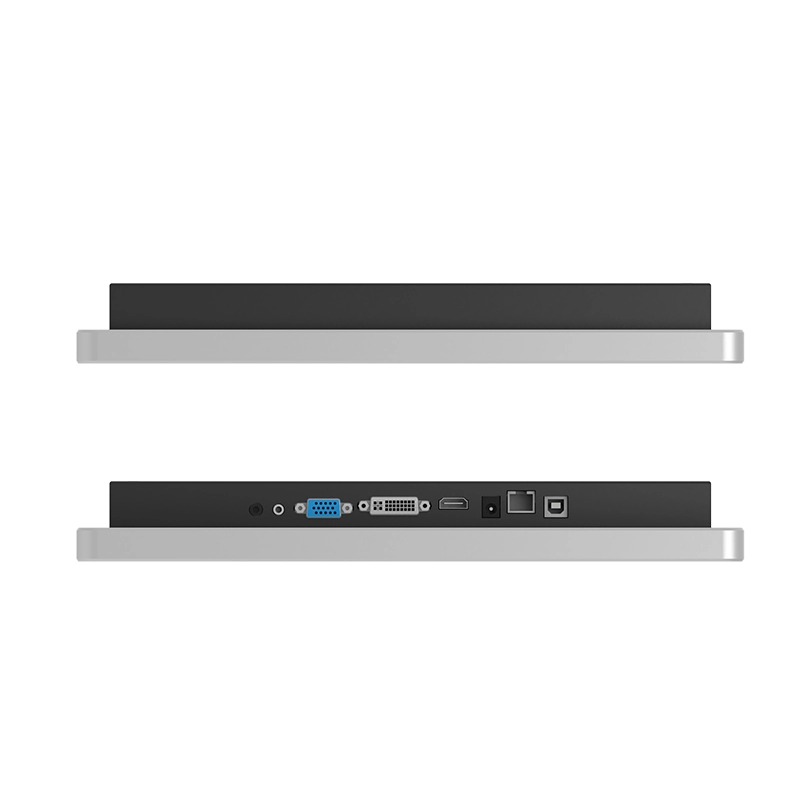

The GreenTouch capacitive touch monitors 3A series includes HDMI, VGA, DP, DVI ,MIC,and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.
Function And Structure

3A adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. This model features an industrial aesthetic design, with an aluminum alloy frame and an aluminum alloy painted back cover, combining functionality, technology, and materials.

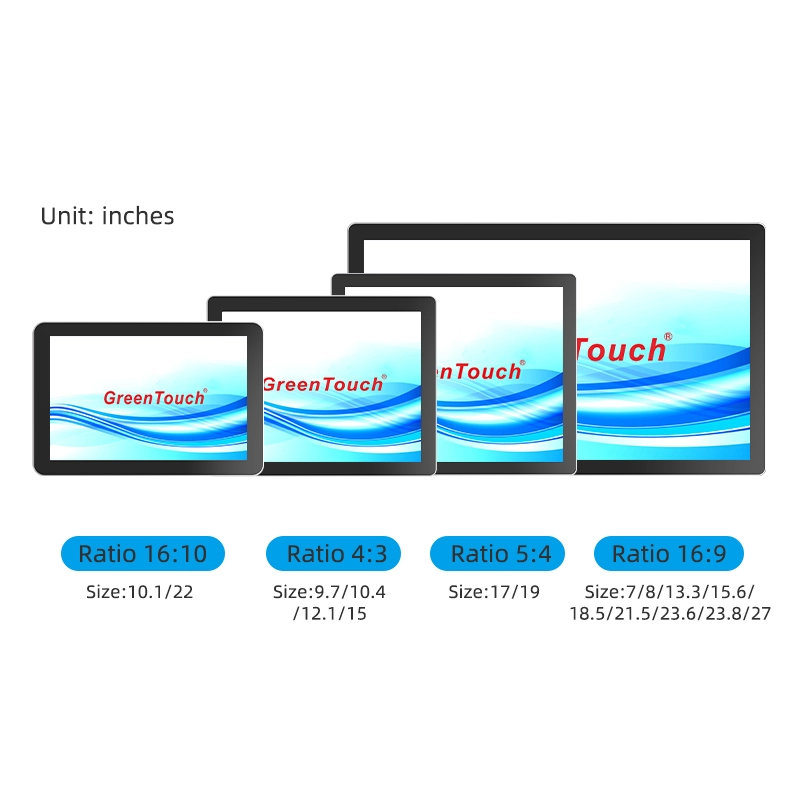

Multiple sizes available

(Ratio 16:10) Size:10.1”,22”
(Ratio 4:3) Size:9.7”,10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:7”,8”,13.3”,15.6”,18.5”,21.5”,23.6”,23.8”,27”

Mounting Options

Embedded

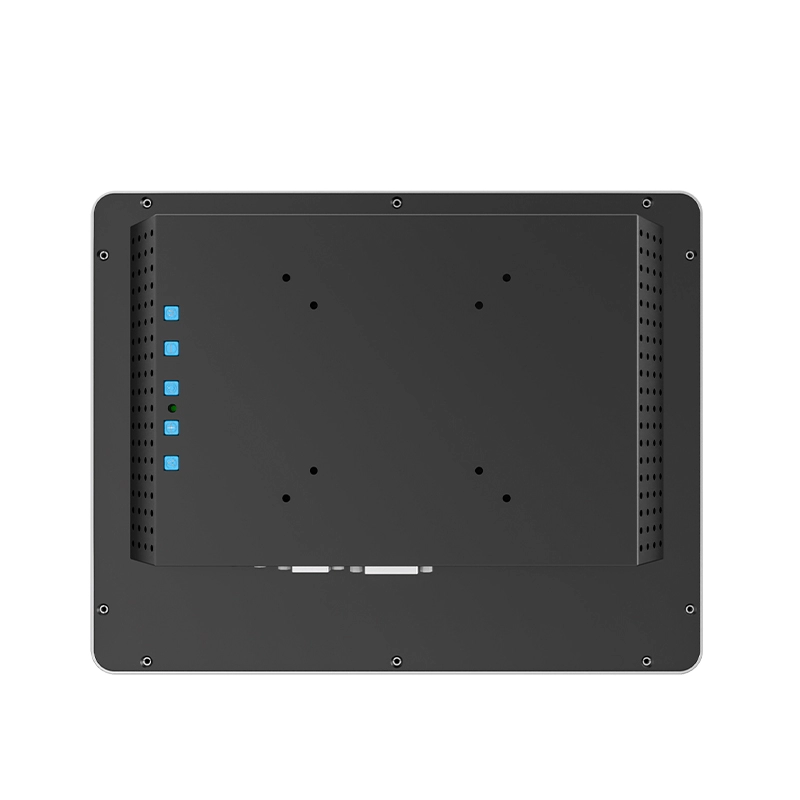

3A touch monitor is equipped with the Vesa (100mm x100mm) or (75mm x 75mm) mounting hole can for embedded installation.All you need is a metal plate adapter bracket, one end of which connects to the monitor’s VESA mount, and the other end provides mounting ears (with screw holes) that extend outwards. Then, press the bezel/clip together and secure it with screws to ensure a flush fit.

Wall Mount

Desktop

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(3A Series) Regular Sizes: 7.0″,8.0″,9.7″,10.1″,10.4″,12.1″,13.3″,15″, 15.6″,17″,18.5″,19″,21.5″,22″,23.6″,23.8″,27″ Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK06

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:7 to 27 inches Resolution:1920×1080,1680×1050,1280×800, 1366×768,1024×768,800×600 @60Hz Aspect Ratio:16:9 ,16:10,4:3,5:4 Brightness:250,300,350,400,430,450,500,1000 nits Touch Technology:Capacitive 10 Points Touch Touch Support System:Windows,Android,Linux

Environmental Continuous Operation:24/7 Operating Temperature:-20°C to 70°C Storage Temperature:-30°C to 80°C Operating Humidity:20% to 80% (No Condensation) Storage Humidity:10% to 90% (Non-condensing)

Connectivity Display Ports 1:EARPHONE,AUDIO IN,VGA,DVI,HDMI,DC IN,OSD,TYPE-B(USB) Display Ports 2:EARPHONE,AUDIO IN,VGA,HDMI,DP,DC IN,TYPE-B(USB)

Mounting Embedded:Metal Plate Adapter Bracket Wall Mount:VESA 75×75/100x100mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, Explosion-proof IK06

About Display Ports

1.VGA+DVA+HDMI

2.VGA+HDMI+DP

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
7″	GT-TM-0703A	VGA,HDMI,DP	16:9	188.5×123.5×42.8mm	154.2×85.9mm	500	1024 x 600	GT-TM0703A_
8″	GT-TM-0803A	VGA,HDMI,DP	16:9	218.1 x140.9×42.8mm	176.6×99.4mm	500	1024 x 600	GT-TM0803A
9.7″	GT-TM-0973A	VGA,DVI,HDMI,DP	4:3	242.1×192.9×42.8mm	196.6×147.5mm	350	1024 x 768	GT-TM0973A
10.1″	GT-TM-1013A	VGA,DVI,HDMI,DP	16:10	259.5×174.1×43.8mm	216.9×135.6mm	330	1280 x 800	GT-TM1013A
10.4″	GT-TM-1043A	VGA,DVI,HDMI,DP	4:3	261.6×208.8x43mm	211.2×158.4mm	300	800 x 600	GT-TM1043A
12.1″	GT-TM-1213A	VGA,DVI,HDMI,DP	4:3	294.5x233x44mm	245.8×184.3mm	500	1024 x 768	GT-TM1213A
13.3″	GT-TM-1333A	VGA,DVI,HDMI,DP	16:9	346.9×218.5x44mm	293.8×165.2mm	300	1920 x 1080	GT-TM1333A
15″	GT-TM-1503A	VGA,DVI,HDMI,DP	4:3	355.4 x279.4×42.8mm	304.1×228.1mm	300	1024 x 768	GT-TM1503A
15.6″	GT-TM-1563A	VGA,DVI,HDMI,DP	16:9	398.9×248.2x42mm	344.2×193.6mm	400	1366 x 768	GT-TM1563A
17″	GT-TM-1703A	VGA,DVI,HDMI,DP	5:4	389.3×321.7×42.8mm	337.9×270.3mm	250	1280 x 1024	GT-TM1703A
18.5″	GT-TM-0703A	VGA,DVI,HDMI,DP	16:9	456.9×277.4x42mm	409.8×230.4mm	250	1366 x 768	GT-TM1853A
19″	GT-TM-1903A	VGA,DVI,HDMI,DP	5:4	428.7×353.5×42.8mm	376.3×301.1mm	250	1280 x 1024	GT-TM1903A
21.5″	GT-TM-2153A	VGA,DVI,HDMI,DP	16:9	526 x317.3x42mm	476.6×268.1mm	250	1920 x 1080	GT-TM2153A
22″	GT-TM-2203A	VGA,DVI,HDMI,DP	16:10	524.1×346.5x42mm	473.8×296.1mm	250	1680 x 1050	GT-TM2203A_
23.6″	GT-TM-2363A	VGA,DVI,HDMI,DP	16:9	574.5×346.8x42mm	521.3×293.2mm	300	1920 x 1080	GT-TM2363A
23.8″	GT-TM-2383A	VGA,DVI,HDMI,DP	16:9	574.5×346.8x42mm	521.3×293.2mm	300	1920 x 1080	GT-TM2383A
27″	GT-TM-2703A	VGA,DVI,HDMI,DP	16:9	656×394.6x42mm	597.9×336.3mm	300	1920 x 1080	GT-TM2703A
