Open Frame Touch Monitor 7-55 Inches(2C Series)

Product Information
Resolution:Full HD,UHD
Intereface: VGA,DVI,HDMI,DP, MIC,AUDIO
Mounting: Embedded,Wall-mounted,Desktop
Customizable: Size,Logo,Color,Casing,Packaging
Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08

Features
● Industrial-grade LCD panels for long operating life
● IP65 and front protection to resist water and dust
● Dense ventilation holes for reliable 24/7 operation
● Surface treatment: AG,AR,AF,Antibacterial（Optional）

Get a quote

Online Consultation

Product Description
Mounting Options
Specifications
About Display Ports
Application Field
Specification and download

Product Description

2C Touch Monitor Overview

GreenTouch’s open frame touch monitor 2C series provide cost-effective solutions for customers who need industrial touch.A comprehensive size range from 7 ”to 55” ensures compatibility with:Industrial control,terminal accessories,human-machine interaction,smart healthcare,smart Livelihood.
Versatile Connectivity

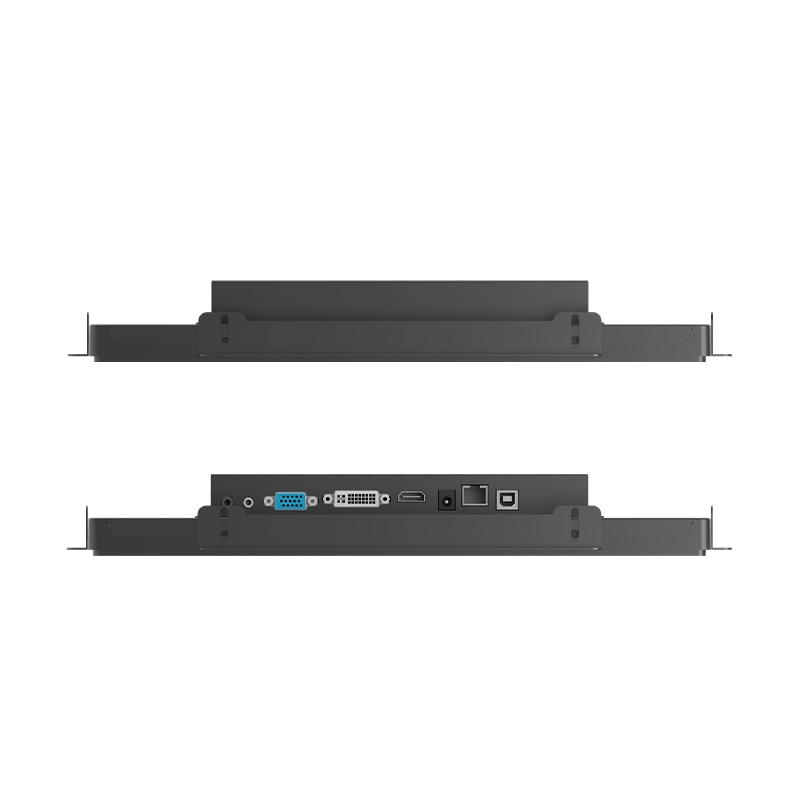

The GreenTouch capacitive touch monitors 2C series includes HDMI, VGA, DP, DVI ,MIC,and AUDIO ports. These connections are all positioned on the back of the monitor and face downward, allowing for easy installation in any scenario. The monitor can be configured to automatically power on or off based on the presence of current or a video signal.
Function And Structure

2C adopt optically bonded touch panel to LCD panel,support projected capacitive 10 points touch,sensitive sensing,accurate fixed point. They precise small frame design will be completely sealed touch screen,and make it easier for customers to install in the cabinet.The 2C uses an industrial plastic front shell,industrial black metal frame,durable and reliable .
Multiple sizes available

(Ratio 16:10) Size:10.1”,22”
(Ratio 5:4) Size:8”,9.7”,10.4”,12.1”,15”
(Ratio 5:4) Size:17”,19
(Ratio 16:9) Size:7”,8”,13.3”,14”,15.6”,18.5”,21.5”,23.6”,23.8”,27”,32”,43”,50”,55”

Mounting Options

Embedded

Each monitor comes standard with a external bracket featuring mounting screw holes, allowing for recessed installation into a cabinet. Their portable design makes installation simple and flexible,seamless integration into nearly any environment.

Wall Mount

Desktop

Specifications

General Manufacturer:GreenTouch Product Name:Touch Monitor(2C Series) Regular Sizes: 7″,8″,9.7″,10.1″,10.4″,12.1″,13.3″,14″,15″, 15.6″,17″,18.5″,19″,21.5″,22″,23.6″,23.8″,27″,32″,43″,50″,55″ Warranty:1-3 Years Certificates:CE,FCC,RoHS,CB,EMC,HDMI,CCC,IP65,IK08

Panel Panel Type:Active Matrix TFT LCD, LED Backlight Diagonal Size:7 to 55 inches Resolution:1920×1080,1680×1050,1280×800, 1366×768,1024×768,800×600 @60Hz Aspect Ratio:16:9 ,16:10,4:3,5:4 Brightness:250,300,350,400,430,450,500,1000 nits Touch Technology:Capacitive 10 Points Touch Touch Support System:Windows,Android,Linux

Environmental Continuous Operation:24/7 Operating Temperature:-20°C to 70°C Storage Temperature:-30°C to 80°C Operating Humidity:20% to 80% (No Condensation) Storage Humidity:10% to 90% (Non-condensing)

Connectivity Display Ports 1:EARPHONE,AUDIO IN,VGA,DVI,HDMI,DC IN,OSD,TYPE-B(USB) Display Ports 2:EARPHONE,AUDIO IN,VGA,HDMI,DP,DC IN,TYPE-B(USB)

Mounting Embedded:External Bracket Wall Mount:VESA 75×75/100×100/200×100/400x400mm Desktop:VESA Mounting Bracket

Compliance Certifications:CE,FCC,RoHS,CB,EMC,HDMI,CCC Standards:Waterproof/Dustproof IP65, IK08 impact resistance

About Display Ports

1.VGA+DVA+HDMI

2.VGA+HDMI+DP

Application Field

Specification and download

Size	Model	Display ports	Ratio	Display Size (WHT)	Active Area Dimensions(H*V)	Brightness (nits）	Resolution @60Hz	Data Download
7.0″	GT-TM0702C	VGA,HDMI,DP	16:9	190.4 x 123.4 x 41.2mm	154.0 x 85.9mm	400	1024 x 600	GT-TM0702C
8.0″	GT-TM0802C	VGA,HDMI,DP	16:9	218.0 x 140.8 x 41.2mm	176.6 x 99.3mm	500	1024 x 600	GT-TM0802C
8.0″	GT-TM0802C2	VGA,HDMI,DP	4:3	205.8 x 165.8 x 44.5mm	162.1 x 121.5mm	230	1024 x 768	GT-TM0802C
9.7″	GT-TM0902C	VGA,DVI,HDMI,DP	4:3	238 x 188.9 x 44.2mm	196.6 x 147.4mm	350	1024 x 768	GT-TM0972C
10.1″	GT-TM1012C	VGA,DVI,HDMI,DP	16:10	265 x 179.5 x 45mm	216.9 x 135.6mm	430	1280 x 800	GT-TM1012C
10.4″	GT-TM1042C	VGA,DVI,HDMI,DP	4:3	261.6 x 208.8 x 47.5mm	211.2 x 158.4mm	300	800 x 600	GT-TM1042C
12.1″	GT-TM1212C	VGA,DVI,HDMI,DP	4:3	294.4 x 232.9 x 47.5mm	245.7 x 184.3mm	500	1024 x 768	GT-TM1212C
13.3″	GT-TM1332C	VGA,DVI,HDMI,DP	16:9	350.8 x 222.4 x 47.5mm	293.7 x 165.2mm	300	1920 x 1080	GT-TM1332C
14.0″	GT-TM1402C	VGA,DVI,HDMI,DP	16:9	346.9 x 233.4 x 44.2mm	301.6 x 188.5mm	300	1920 x 1200	GT-TM1402C
15″	GT-TM1502C	VGA,DVI,HDMI,DP	4:3	355 x 279 x 47mm	304 x 228mm	300	1024 x 768	GT-TM1502C
15.6″	GT-TM1562C	VGA,DVI,HDMI,DP	16:9	398 x 248 x 47mm	344 x 193.5mm	400	1366 x 768	GT-TM1562C
17″	GT-TM1702C	VGA,DVI,HDMI,DP	5:4	385 x 317 x 47mm	338.9 x 271.3mm	250	1280 x 1024	GT-TM1702C
18.5″	GT-TM1852C	VGA,DVI,HDMI,DP	16:9	457 x 281 x 47mm	409.8 x 230.4mm	250	1366 x 768	GT-TM1852C
19″	GT-TM1902C	VGA,DVI,HDMI,DP	5:4	430 x 355 x 47mm	376.3 x 301mm	250	1280 x 1024	GT-TM1902C
21.5″	GT-TM2152C	VGA,DVI,HDMI,DP	16:9	532 x 319 x 47mm	476.1 x 267.8mm	250	1920 x 1080	GT-TM2152C
22″	GT-TM2202C	VGA,DVI,HDMI,DP	16:10	527.2 x 350.2 x 60mm	473.7 x 296.1mm	250	1680 x 1050	GT-TM2202C
23.6″	GT-TM2362C	VGA,DVI,HDMI,DP	16:9	581.8 x 350.8 x 60mm	521.2 x 293.2mm	300	1920 x 1080	GT-TM2362C
23.8″	GT-TM2382C	VGA,DVI,HDMI,DP	16:9	586 x 356 x 47mm	527 x 296.4mm	250	1920 x 1080	GT-TM2382C
27″	GT-TM2702C	VGA,DVI,HDMI,DP	16:9	655.7 x 396 x 55mm	597.9 x 336.3mm	300	1920 x 1080	GT-TM2702C
32″	GT-TM3202C	VGA,DVI,HDMI,DP	16:9	749.1 x 452.7 x 65mm	698.4 x 392.8mm	400	1920 x 1080	GT-TM3202C
43″	GT-TM4302C	VGA,DVI,HDMI,DP	16:9	1007.3 x 596.6 x 69mm	940.8 x 529.2mm	400	1920 x 1080	GT-TM4302C
50″	GT-TM5002C	VGA,DVI,HDMI,DP	16:9	1141.9 x 672.2 x 70mm	1079.8 x 610mm	400	1920 x 1080	GT-TM5002C
55″	GT-TM5502C	VGA,DVI,HDMI,DP	16:9	1277.7 x 748.5 x 70mm	1209.6 x 680.4mm	400	1920 x 1080	GT-TM5502C
